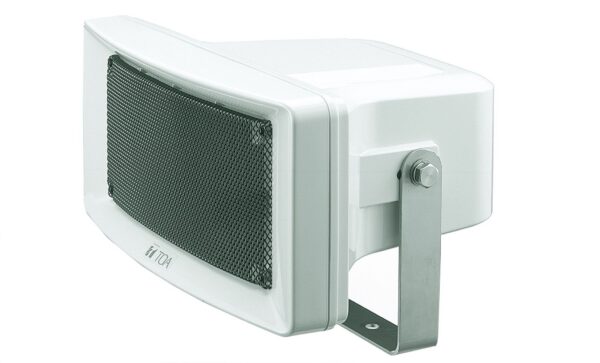

Toa CS154 & CS304 Wide Range Outdoor Horn Speaker

The CS-154 15 watt and CS-304 30 watt outdoor speakers feature stainless steel hardware for all-weather durability. They are designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-series employs a rotary switch that facilitates impedance changes. It also employs a constant directivity horn for clear sound output over its horizontal range of 90゜operation.

CS-154 Specifications

Rated Input 15 W
Rated Impedance 100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
Sensitivity 97 dB (1 W, 1 m)
Frequency Response 150 - 15,000 Hz
Speaker Component 12 cm cone-type
Horizontal Directivity Constant directivity horn 90゜ (±45゜ horizontal from front axis)
93 dB or more (1 W, 1 m), 3 kHz at ±45゜
Speaker Cord 2-core cabtyre cord with diameter of 6 mm
Operating Temperature -20℃ to +55℃
Dust/Water Protection IP65
Finish Horn, cover: ABS resin, off-white, paint
Bracket: Stainless steel
Net: Aluminum, gray, paint
Screw: Stainless steel
Dimensions 366 (W) × 230 (H) × 272 (D) mm
Weight 2.8 kg

CS-304 Specifications

Rated Input 30 W
Rated Impedance 100 V line: 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Sensitivity 98 dB (1 W, 1 m)
Frequency Response 120 - 15,000 Hz
Speaker Component 12 cm cone-type
Horizontal Directivity Constant directivity horn 90゜ (±45゜ horizontal from front axis)
93 dB or more (1 W, 1 m), 3 kHz at ±45゜
Speaker Cord 2-core cabtyre cord with diameter of 6 mm
Operating Temperature -20℃ to +55℃
Dust/Water Protection IP65
Finish Horn, cover: ABS resin, off-white, paint
Bracket: Stainless steel
Net: Aluminum, gray, paint
Screw: Stainless steel
Dimensions 366 (W) × 230 (H) × 272 (D) mm
Weight 3.1 kg
